Natural fiber substitution in glass fiber-reinforced plastics: A Tensile properties simulation

Authors

  • Alief Wikarta Department of Mechanical Engineering, Faculty of Industrial Technology and Systems Engineering, Institut Teknologi Sepuluh Nopember, Indonesia
  • Chandya Andikusuma Department of Mechanical Engineering, Faculty of Industrial Technology and Systems Engineering, Institut Teknologi Sepuluh Nopember, Indonesia
  • Julendra Ariatedja Department of Mechanical Engineering, Faculty of Industrial Technology and Systems Engineering, Institut Teknologi Sepuluh Nopember, Indonesia
  • I Made Londen Batan Department of Mechanical Engineering, Faculty of Industrial Technology and Systems Engineering, Institut Teknologi Sepuluh Nopember, Indonesia
  • Femiana Gapsari Department of Mechanical Engineering, Faculty of Engineering, Universitas Brawijaya, Indonesia
  • Sze Wei Khoo Department of Industrial Engineering, Universiti Tunku Abdul Rahman, Malaysia

DOI:

https://doi.org/10.24036/teknomekanik.v8i1.33472

Keywords:

finite element analysis, GFRP, hybrid composite, natural fiber, tensile test

Abstract

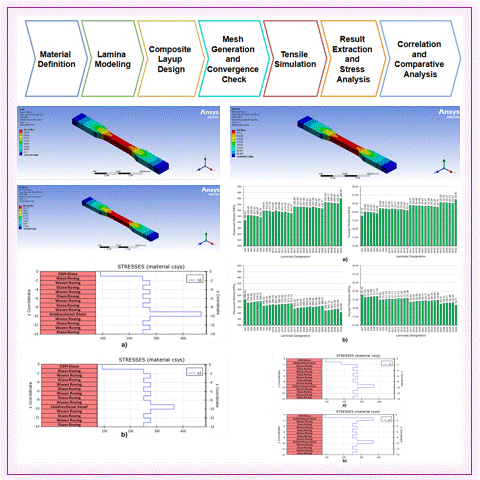

Glass fiber-reinforced polymer composite materials, commonly used for industrial axial flow fan blades due to their high strength-to-weight ratio, are environmentally criticized for their non-biodegradability. This concern has prompted the investigation of eco-friendly alternatives, such as sisal and kenaf as natural fibers. Although they generally have lower mechanical properties than synthetic fibers, they offer advantages in terms of biodegradability, cost, and density. This study aims to evaluate the feasibility of partially substituting glass fiber with unidirectional natural fibers kenaf and sisal in a 14-layer GFRP axial fan blade through numerical simulation. The research employed a finite element method (FEM) to simulate tensile testing in accordance with ASTM D-638 standards. Several hybrid layer configurations were analyzed, focusing on the number and position of natural fiber layers replacing glass fiber, particularly the glass roving (GR) layers. The simulation investigated how these substitutions influence the overall tensile stress and elastic modulus of the composite blade structure. The findings suggest that this substitution does not significantly affect tensile characteristics but substantially improves the biodegradability of the composite, resulting in a more environmentally friendly material without compromising mechanical performance.

Downloads

Download data is not yet available.

References

M. K. Buragohain, Composite Structures. CRC Press, 2017. https://doi.org/10.1201/9781315268057

V. S. Chinta, P. Ravinder Reddy, and K. E. Prasad, “The effect of stacking sequence on the tensile properties of jute fibre reinforced hybrid composite material for axial flow fan blades: An experimental and finite element investigation,” Mater Today Proc, vol. 59, pp. 747–755, 2022, https://doi.org/10.1016/j.matpr.2021.12.500

C. I. Morăraș, V. Goanță, D. Husaru, B. Istrate, P. D. Bârsănescu, and C. Munteanu, “Analysis of the Effect of Fiber Orientation on Mechanical and Elastic Characteristics at Axial Stresses of GFRP Used in Wind Turbine Blades,” Polymers (Basel), vol. 15, no. 4, p. 861, Feb. 2023, https://doi.org/10.3390/polym15040861

H. Xin, A. S. Mosallam, Y. Liu, C. Wang, and J. He, “Experimental and numerical investigation on assessing local bearing behavior of a pultruded GFRP bridge deck,” Compos Struct, vol. 204, pp. 712–730, Nov. 2018, https://doi.org/10.1016/j.compstruct.2018.07.082

S. Duan, X. Yang, Y. Tao, F. Mo, Z. Xiao, and K. Wei, “Experimental and numerical investigation of Long Glass Fiber Reinforced Polypropylene composite and application in automobile components,” Transport, pp. 1–9, May 2017, https://doi.org/10.3846/16484142.2017.1323231

S.-C. Shi et al., “Rice straw-derived chitosan-enhanced plasticizers as biologically and environmentally friendly alternatives for sustainable materials,” Int J Biol Macromol, vol. 264, p. 130547, Apr. 2024, https://doi.org/10.1016/j.ijbiomac.2024.130547

S.-C. Shi, X.-N. Tsai, and D. Rahmadiawan, “Enhancing the tribological performance of hydroxypropyl methylcellulose composite coatings through nano-sized metal and oxide additives: A comparative study,” Surf Coat Technol, vol. 483, p. 130712, May 2024, https://doi.org/10.1016/j.surfcoat.2024.130712

M. R. Sanjay, P. Madhu, M. Jawaid, P. Senthamaraikannan, S. Senthil, and S. Pradeep, “Characterization and properties of natural fiber polymer composites: A comprehensive review,” J Clean Prod, vol. 172, pp. 566–581, Jan. 2018, https://doi.org/10.1016/j.jclepro.2017.10.101

O. Faruk, A. K. Bledzki, H.-P. Fink, and M. Sain, “Biocomposites reinforced with natural fibers: 2000–2010,” Prog Polym Sci, vol. 37, no. 11, pp. 1552–1596, Nov. 2012, https://doi.org/10.1016/j.progpolymsci.2012.04.003

Y. G. Thyavihalli Girijappa, S. Mavinkere Rangappa, J. Parameswaranpillai, and S. Siengchin, “Natural Fibers as Sustainable and Renewable Resource for Development of Eco-Friendly Composites: A Comprehensive Review,” Front Mater, vol. 6, Sep. 2019, https://doi.org/10.3389/fmats.2019.00226

A. Gholampour and T. Ozbakkaloglu, “A review of natural fiber composites: properties, modification and processing techniques, characterization, applications,” J Mater Sci, vol. 55, no. 3, pp. 829–892, Jan. 2020, https://doi.org/10.1007/s10853-019-03990-y

K. Senthilkumar et al., “Mechanical properties evaluation of sisal fibre reinforced polymer composites: A review,” Constr Build Mater, vol. 174, pp. 713–729, Jun. 2018, https://doi.org/10.1016/j.conbuildmat.2018.04.143

N. R. J. Hynes et al., “Effect of stacking sequence of fibre metal laminates with carbon fibre reinforced composites on mechanical attributes: Numerical simulations and experimental validation,” Compos Sci Technol, vol. 221, p. 109303, Apr. 2022, https://doi.org/10.1016/j.compscitech.2022.109303

T. Mishra, P. Mandal, A. K. Rout, and D. Sahoo, “A state-of-the-art review on potential applications of natural fiber-reinforced polymer composite filled with inorganic nanoparticle,” Composites Part C: Open Access, vol. 9, p. 100298, Oct. 2022, https://doi.org/10.1016/j.jcomc.2022.100298

R. M. Abhilash, G. S. Venkatesh, and S. S. Chauhan, “Micromechanical modeling of bamboo short fiber reinforced polypropylene composites,” Multiscale and Multidisciplinary Modeling, Experiments and Design, vol. 4, no. 1, pp. 25–40, Mar. 2021, https://doi.org/10.1007/s41939-020-00081-3

M. Rouway et al., “Prediction of Mechanical Performance of Natural Fibers Polypropylene Composites: a Comparison Study,” IOP Conf Ser Mater Sci Eng, vol. 948, no. 1, p. 012031, Nov. 2020, https://doi.org/10.1088/1757-899X/948/1/012031

Z. I. Makruf, W. Afnison, and B. Rahim, “A Study on the utilization of areca nut husk fiber as a natural fibre reinforcement in composite applications: A systematic literature review,” Journal of Engineering Researcher and Lecturer, vol. 3, no. 1, pp. 18–28, Apr. 2024, https://doi.org/10.58712/jerel.v3i1.123

G. R. Kumar, R. Vijayanandh, M. S. Kumar, and S. S. Kumar, “Experimental testing and numerical simulation on natural composite for aerospace applications,” 2018, p. 090045. https://doi.org/10.1063/1.5032892

N. M. Nurazzi et al., “A Review on Mechanical Performance of Hybrid Natural Fiber Polymer Composites for Structural Applications,” Polymers (Basel), vol. 13, no. 13, p. 2170, Jun. 2021, https://doi.org/10.3390/polym13132170

M. A. R. Ferdian and A. Wikarta, “Mechanical Properties of the Polyester Hybrid Composite Reinforced by Fiberglass and Bamboo Blades as the Replacement Materials for 10GT Boat,” 2025, pp. 259–267. https://doi.org/10.1007/978-981-97-7898-0_29

C. Balaji Ayyanar et al., “Experimental and numerical analysis of natural fillers loaded and E-glass reinforced epoxy sandwich composites,” Journal of Materials Research and Technology, vol. 32, pp. 1235–1244, Sep. 2024, https://doi.org/10.1016/j.jmrt.2024.07.142

H. Ku, H. Wang, N. Pattarachaiyakoop, and M. Trada, “A review on the tensile properties of natural fiber reinforced polymer composites,” Compos B Eng, vol. 42, no. 4, pp. 856–873, Jun. 2011, https://doi.org/10.1016/j.compositesb.2011.01.010

K. Yorseng, S. M. Rangappa, H. Pulikkalparambil, S. Siengchin, and J. Parameswaranpillai, “Accelerated weathering studies of kenaf/sisal fiber fabric reinforced fully biobased hybrid bioepoxy composites for semi-structural applications: Morphology, thermo-mechanical, water absorption behavior and surface hydrophobicity,” Constr Build Mater, vol. 235, p. 117464, Feb. 2020, https://doi.org/10.1016/j.conbuildmat.2019.117464

J. Naveen, M. Jawaid, P. Amuthakkannan, and M. Chandrasekar, “Mechanical and physical properties of sisal and hybrid sisal fiber-reinforced polymer composites,” in Mechanical and Physical Testing of Biocomposites, Fibre-Reinforced Composites and Hybrid Composites, Elsevier, 2019, pp. 427–440. https://doi.org/10.1016/B978-0-08-102292-4.00021-7

A. Manral and P. K. Bajpai, “Analysis of properties on chemical treatment of kenaf fibers,” Mater Today Proc, vol. 40, pp. S35–S38, 2021, https://doi.org/10.1016/j.matpr.2020.03.266

Y. Wu, C. Xia, L. Cai, A. C. Garcia, and S. Q. Shi, “Development of natural fiber-reinforced composite with comparable mechanical properties and reduced energy consumption and environmental impacts for replacing automotive glass-fiber sheet molding compound,” J Clean Prod, vol. 184, pp. 92–100, May 2018, https://doi.org/10.1016/j.jclepro.2018.02.257

N. A. Nik Ismail, M. Nazrul Roslan, A. E. Ismail, and M. Yazid Yahaya, “Influence of reinforcement stacking sequence and mesh size on the tensile performance of novel hybrid bamboo fiber/aluminium mesh reinforced polymer composites,” Mater Today Proc, Mar. 2023, https://doi.org/10.1016/j.matpr.2023.03.315

Y. Wang, W. Sun, and L. Cao, “Tensile and flexural mechanical attributes of hybrid carbon/basalt fiber metal laminates under various hybridization and stacking sequences,” Compos Part A Appl Sci Manuf, vol. 177, p. 107942, Feb. 2024, https://doi.org/10.1016/j.compositesa.2023.107942

K. Anam, A. Purnowidodo, B. Ananta, and P. K. A. V. Kumar, “The Effect of Load Steps and Initial Crack Length on Stress Distribution of Fiber Metal Laminates,” Mechanics Exploration and Material Innovation, vol. 1, no. 2, pp. 54–60, Apr. 2024, https://doi.org/10.21776/ub.memi.2024.001.02.3

Downloads

Published

2025-06-30

How to Cite

Wikarta, A., Andikusuma, C., Ariatedja, J., Batan, I. M. L., Gapsari, F., & Khoo, S. W. (2025). Natural fiber substitution in glass fiber-reinforced plastics: A Tensile properties simulation. Teknomekanik, 8(1), 99–116. https://doi.org/10.24036/teknomekanik.v8i1.33472
